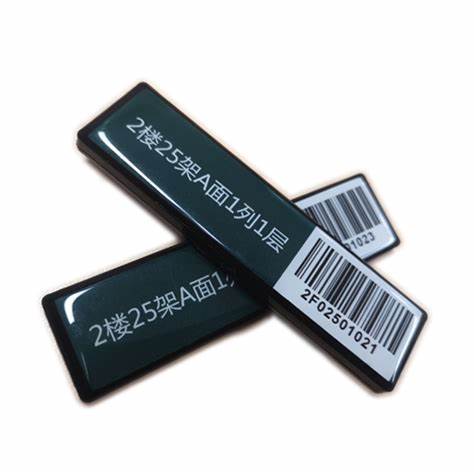

UHF ISO18000-6C Bookshelf Anti-metal RFID Library Tag

Short Description:

UHF ISO18000-6C Bookshelf Anti-metal RFID Library Tag

It is mainly used for It is mainly used in books anti-theft, automatic borrow and return, inventory counting and tracking. Compared with traditional bar code tags, RFID electronic tags are faster and more efficient to use, and can greatly reduce manpower and material resources and save operating costs. Currently, there are two types of library RFID tags: UHF(860-960MHz） and HF/NFC(13.56MHz). UHF tags are generally long and placed on the spine of the book; high frequency tags are generally square and placed on the back of the book. UHF RFID book tag adopts ISO18000-6C protocol, the commonly used chip is R6/R6P/R6A/U8/U9, the antenna size is 125*6MM, 95*3mm. HF/NFC RFID book tag adopts ISO15693 protocol, the commonly used chip is I CODE X, the tag size is mostly 50*50MM.

Send email to us Download as PDF

Product Detail

Product Tags

UHF ISO18000-6C Bookshelf Anti-metal RFID Library Tag

Item Name	RFID Library Tag

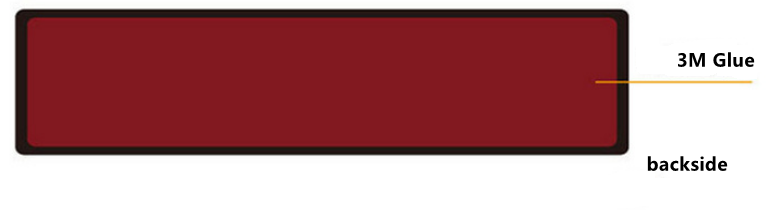

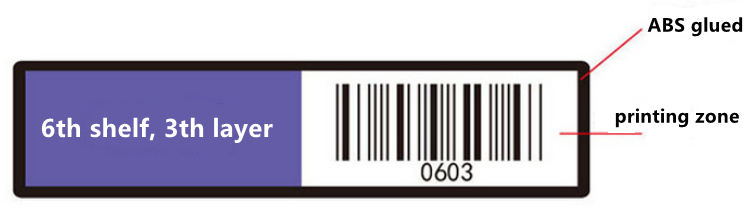

Material	ABS+glue+3M sticker
Size	85226mm or customized
Compliant Standard	ISO/IEC 15693 or ISO18000-6C
Manufacturer/Chip	NXP ICODE SLI-X or Alien H3 chips etc
Protocol	ISO18000-6C
Frequency	816~960MHz
Capacity(EPC/TID)	User 512 bit, TID 32 bit
Read Distance	0-50cm, decided by device
Work Mode	passive
Working Temperature	-25℃~+55℃
Storage Temperature	-25℃~+65℃

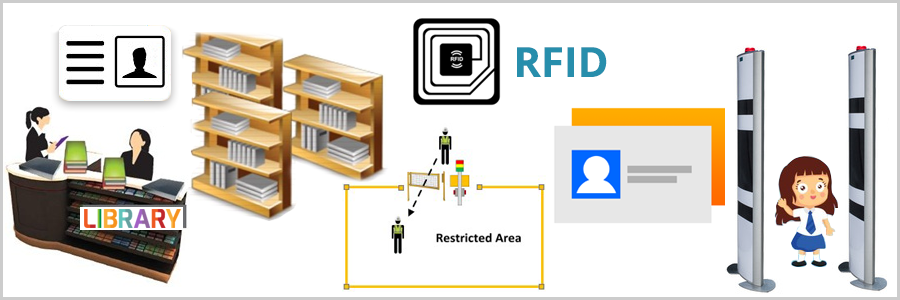

Applications	books anti-theft, automatic borrow and return, inventory counting and tracking.
