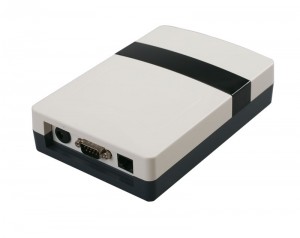

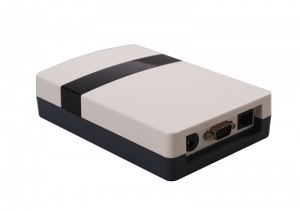

RS232 USB UHF Reader writer

Short Description:

UHFREADER-RFID107 is a high performance UHF RFID integrated reader. It is designed upon fully self-intellectual property. Based on proprietory efficient DSP algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, anti-counterfeit and industrial production process control system.

Send email to us Download as PDF

Product Detail

Product Tags

FEATURES

Self-intellectual property;
Support ISO18000-6B, ISO18000-6C(EPC C1G2) protocol tag;
902~928MHz frequency band(frequency customization optional);
FHSS or Fix Frequency transmission;
RF output power up to 30dbm(adjustable);
Built-in antenna with effect distance up to 0-0.5m^*;
Support auto-running, interactive and trigger-activating work mode;
Low power dissipation with single +9 DC power supply;
Support RS232, USB interface;TCP/IP optional
Effective distance depends on antenna, tag and environment.

CHARACTERISTICS

Absolute Maximum Rating

ITEM	SYMBOL	VALUE	UNIT
Power Supply	VCC	16	V
Operating Temp.	T_OPR	-10~+55	℃
Storage Temp.	T_STR	-20~+75	℃

Electrical and Mechanical Specification

Under T_A＝25℃，VCC＝+9V unless specified

ITEM	SYMBOL	MIN	TYP	MAX	UNIT
Power Supply	VCC	8	9	12	V
Current Dissipation	I_C		350	650	mA
Frequency	F_REQ	902		928	MHz

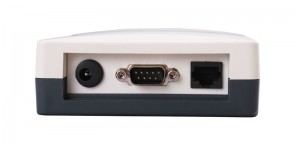

Interface

Item	Comment
Red	+9V
Black	GND
Yellow	Wiegand DATA0
Blue	Wiegand DATA1
Purple	RS485 R+
Orange	RS485 R-
Brown	GND
White	RS232 RXD
Green	RS232 TXD
Grey	Trigger input（TTL level）
