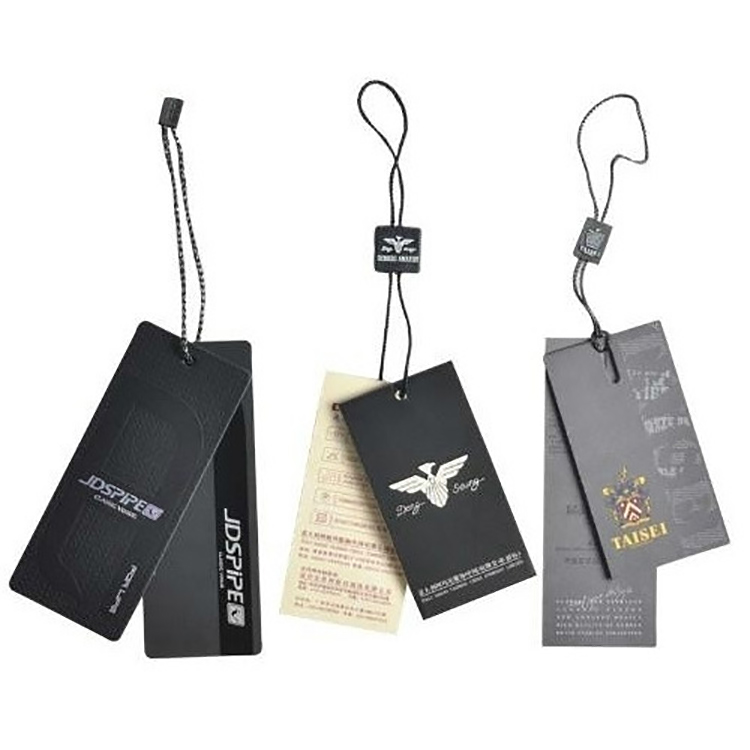

RFID garment tag uhf rfid sticker

Short Description:

RFID garment tag uhf rfid sticker is the most outstanding application where RFID technology impacts on clothing industry. Through radio frequency signal, RFID garment tag uhf rfid sticker can automatically identify target objects and get relevant data, identify work without manual intervention. It can work in all kinds of bad environment, identify the high-speed moving objects multiple electronic tags at the same time through the RFID technology. Because of convenient operation, RFID garment tag uhf rfid sticker can help you to solve various problems of clothing stores and storage areas, which will improve the work efficiency.

Send email to us Download as PDF

Product Detail

Product Tags

RFID Parameter
Item Name	RFID garment tag uhf rfid sticker
Type	Passive UHF RFID Hang Tag
Protocol	ISO/IEC 18000-6C, EPC Class1 Gen2
Frequency	Worldwide 840-960Mhz, US 902-928mhz, EU 865-868Mhz
Chip	Alien Higgs-3,M4/M5, G2,etc
Memory	EPC 96bits
	TID 64bits
	User 512bits
Read&Write	Supported
Read Range	1-10meters adjustable(reader and environment dependent)
Data retention	10years
Programming Cycles	100,000 cycles
Anti-collision	Support multiple tags reading
Physical Parameter
Size	90×30×0.76mm / 3.54×1.18×0.03inch
Material	Plastic PVC
Antenna Material	Aluminum Etching
Installation	Hang with string
Operating temperature	‘-10℃ ~ +65℃
Operating humidity	20% ~ 90%RH
Package	Bags
Customized Service	Printing Logo and designs optional;Size bigger or smaller optional;Material Plastic PVC or Paper;Encoding, Chip&Inlay;
