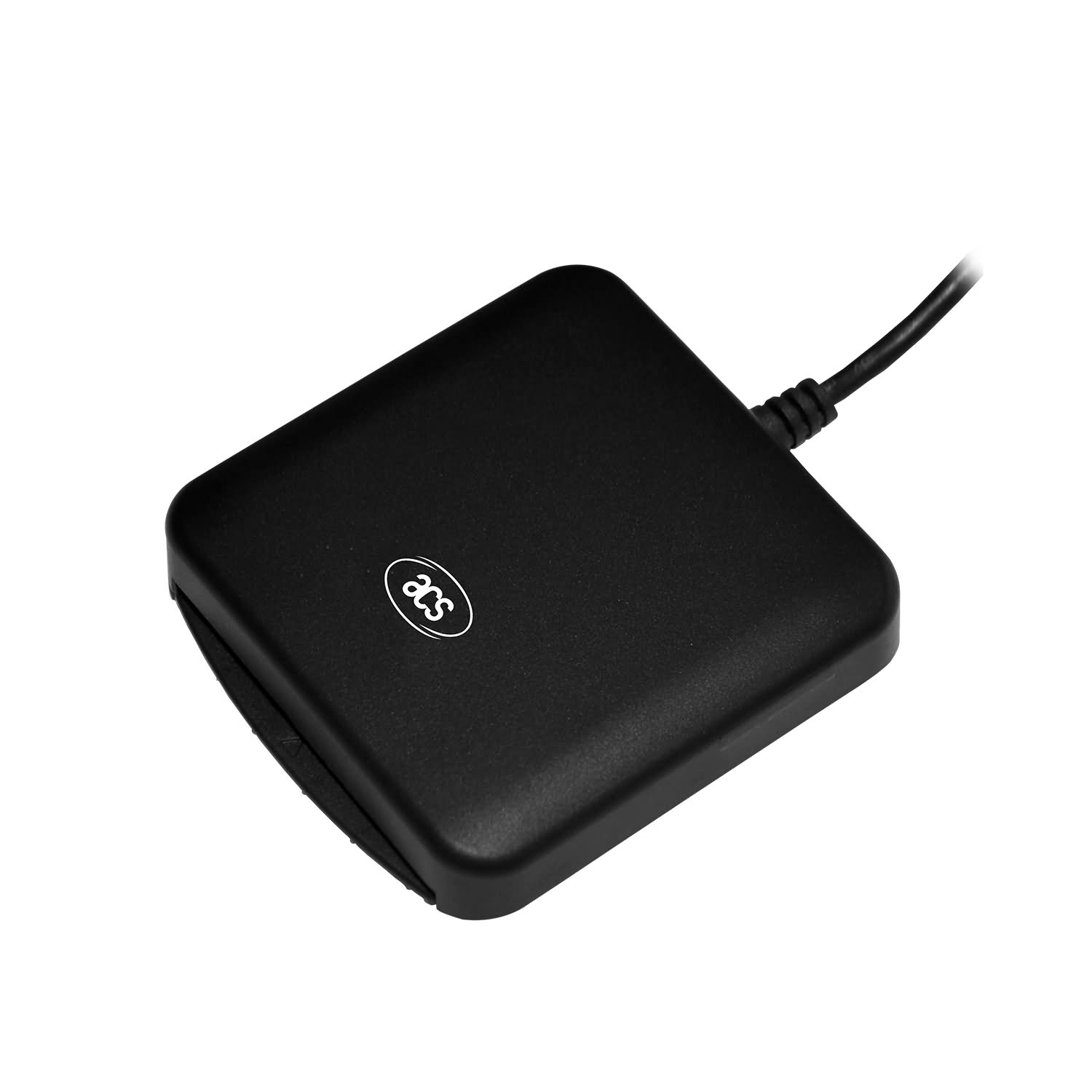

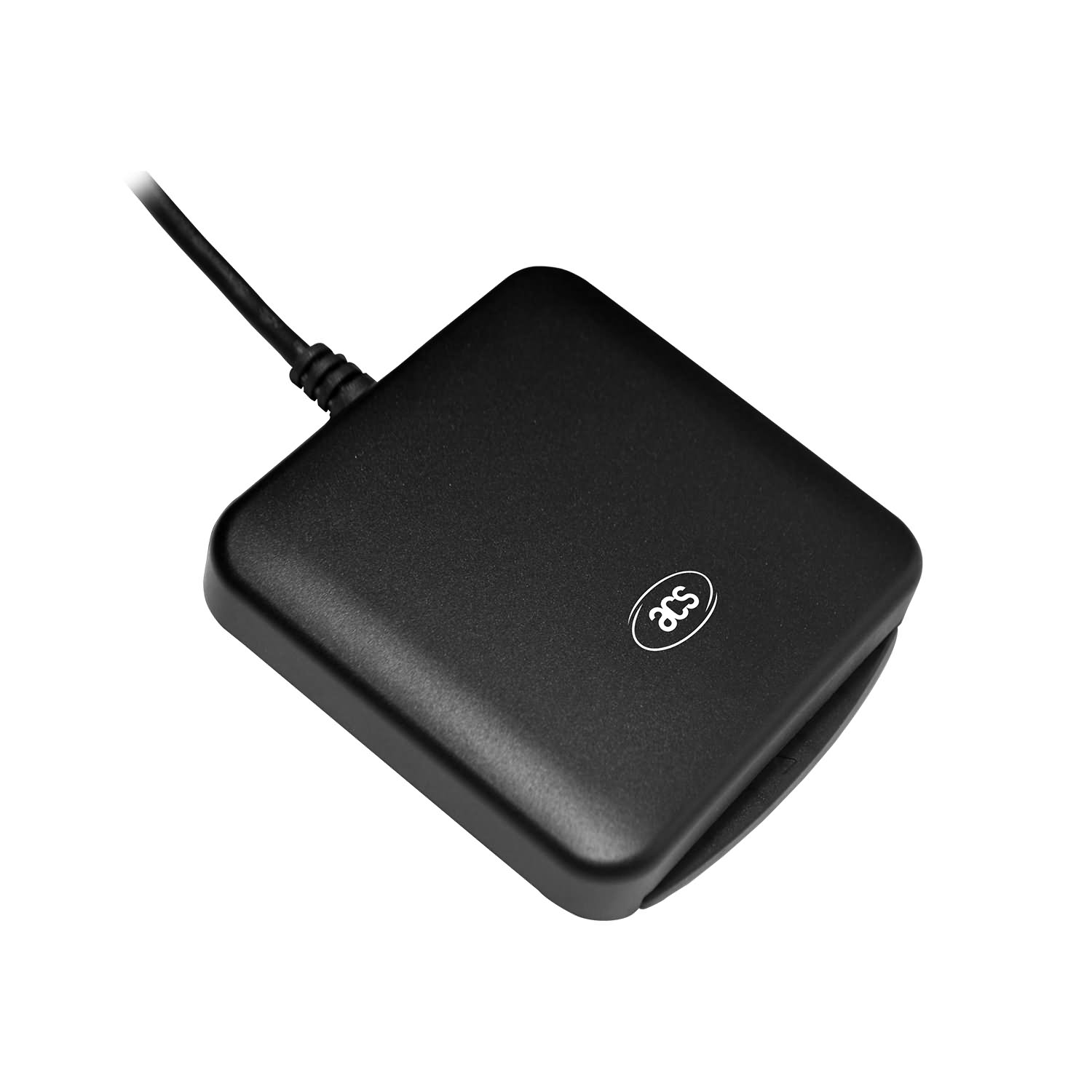

ACR39U Reader
Supports ISO 7816 Class A, B and C (5 V, 3 V, 1.8 V) cards
Supports microprocessor cards with T=0 or T=1 protocol
Supports memory cards such as:
Cards following the I2C bus protocol (free memory cards) with maximum 128 bytes page with capability, including:
Atmel®: AT24C01/02/04/08/16/32/64/128/256/512/1024
SGS-Thomson: ST14C02C, ST14C04C
Gemplus: GFM1K, GFM2K, GFM4K, GFM8K
Cards with intelligent 1k bytes EEPROM with write-protect function, including:
Infineon®: SLE4418, SLE4428, SLE5518 and SLE5528
Cards with intelligent 256 bytes EEPROM with write-protect function, including:
Infineon®: SLE4432, SLE4442, SLE5532 and SLE5542
Supports PPS (Protocol and Parameters Selection)
Features Short Circuit Protection
Application Programming Interface:
Supports PC/SC
Supports CT-API (through wrapper on top of PC/SC)
Supports Android™ 3.1 and later
| Physical Characteristics | |
| Dimensions (mm) | 72.2 mm (L) x 69.0 mm (W) x 14.5 mm (H) |
| Weight (g) | 65.0 g |
| USB Interface | |
| Protocol | USB CCID |
| Connector Type | Standard Type A |
| Power Source | From USB port |
| Speed | USB Full Speed (12 Mbps) |
| Cable Length | 1.5 m, Fixed |
| Contact Smart Card Interface | |
| Number of Slots | 1 Full-sized Card Slot |
| Standard | ISO 7816 Parts 1-3, Class A, B, C (5 V, 3 V, 1.8 V) |
| Protocol | T=0; T=1; Memory Card Support |
| Others | CAC, PIV, SIPRNET, J-LIS Smart Cards |
| Certifications/Compliance | |
| Certifications/Compliance | EN 60950/IEC 60950 |
| ISO 7816 | |
| USB Full Speed | |
| EMV™ Level 1 (Contact) | |
| PC/SC | |
| CCID | |
| PBOC | |
| TAA (USA) | |
| VCCI (Japan) | |
| J-LIS (Japan) | |
| CE | |
| FCC | |
| WEEE | |
| RoHS 2 | |
| REACH2 | |
| Microsoft® WHQL | |
| Device Driver Operating System Support | |
| Device Driver Operating System Support | Windows® |
| Linux® | |
| MAC OS® | |
| Solaris | |
| Android™ 3.1 and later | |
