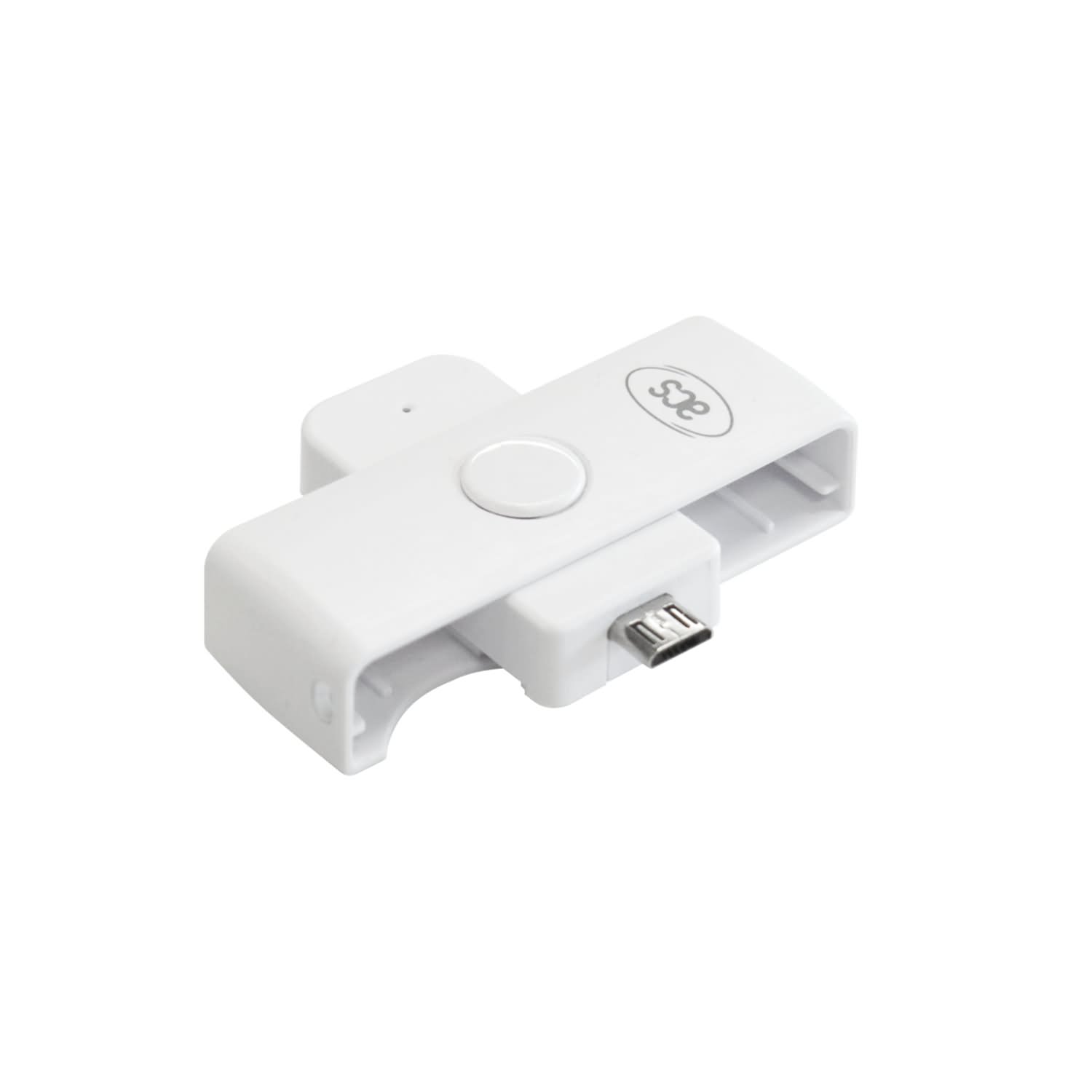

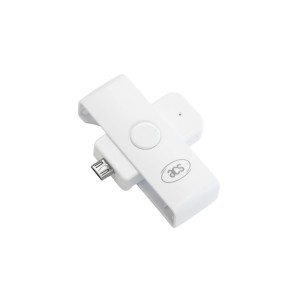

ACR39U-ND Reader

Short Description:

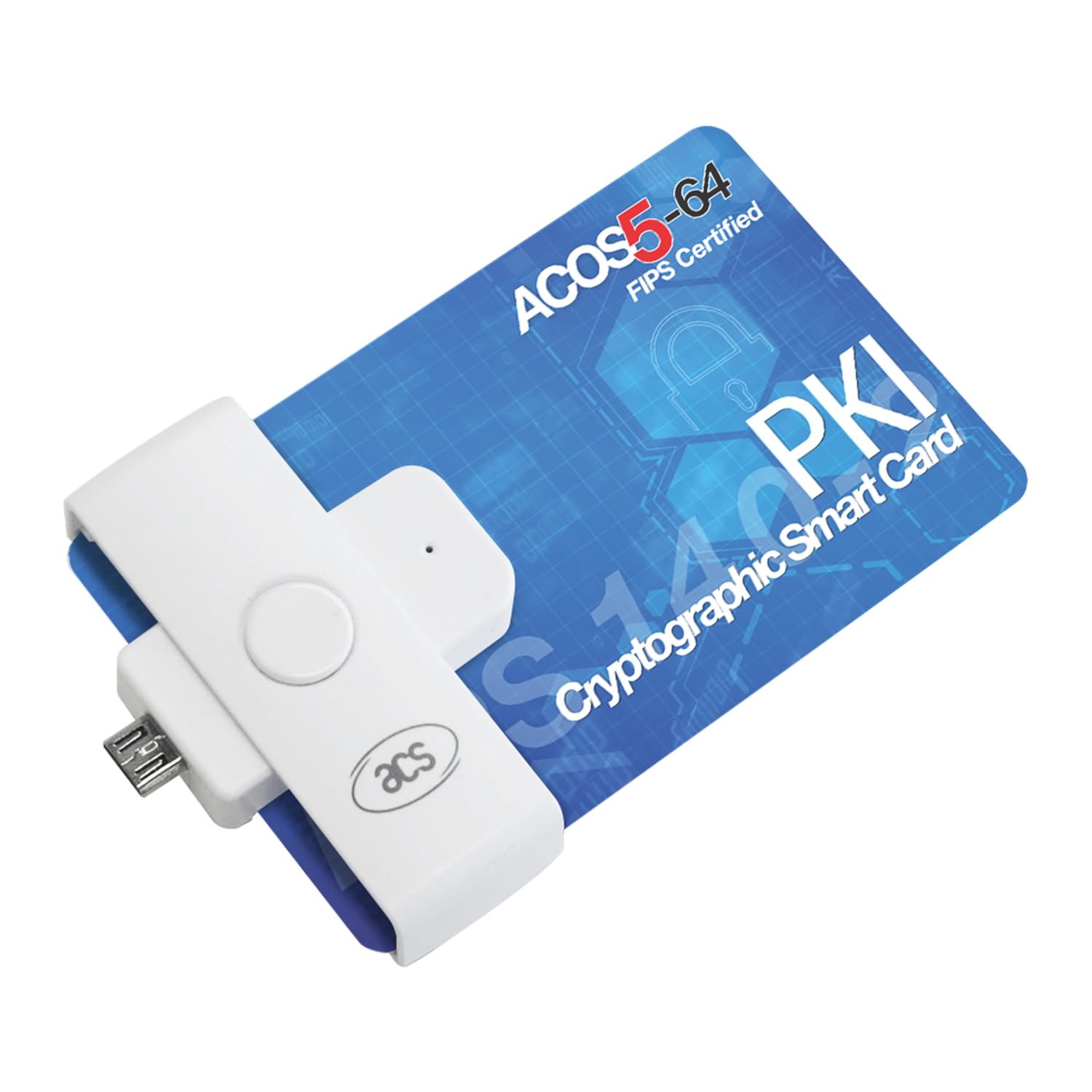

ACR39 Pocketmate II with Micro-USB Connector transforms into a smart card reader for full-sized contact smart cards with just a single swivel motion. This smart card reader, no larger than a USB stick, is capable of supporting demanding smart card applications. It provides value and reliable functionality to meet your security needs.

Send email to us Download as PDF

Product Detail

Product Tags

USB Full Speed Interface
Micro-USB Connector
Plug and Play – CCID support brings utmost mobility
Swivel Motion Design
Smart Card Reader:
Contact Interface:
Supports ISO 7816 Class A, B, and C (5 V, 3 V, 1.8 V) cards
Supports microprocessor cards with T=0 or T=1 protocol
Supports CAC
Supports SIPRNET Card
Supports J=LIS Card
Supports memory cards
Supports PPS (Protocol and Parameters Selection)
Features Short-Circuit Protection
Application Programming Interface:
Supports PC/SC
Supports CT-API (through wrapper on top of PC/SC)
Supports Android™ 3.1 and later

Physical Characteristics
Dimensions (mm)	58.0 mm (L) x 20.0 mm (W) x 13.7 mm (H)
Weight (g)	9.7 g
USB Interface
Protocol	USB CCID
Connector Type	Micro-USB
Power Source	From USB port
Speed	USB Full Speed (12 Mbps)
Contact Smart Card Interface
Number of Slots	1 Full-sized Card Slot
Standard	ISO 7816 Parts 1-3, Class A, B, C (5 V, 3 V, 1.8 V)
Protocol	T=0; T=1; Memory Card Support
Others	CAC, PIV, SIPRNET, J-LIS Smart Cards
Certifications/Compliance
Certifications/Compliance	EN 60950/IEC 60950
	ISO 7816
	USB Full Speed
	EMV™ Level 1 (Contact)
	PC/SC
	CCID
	TAA (USA)
	VCCI (Japan)
	J-LIS (Japan)
	PBOC (China)
	CE
	FCC
	WEEE
	RoHS 2
	REACH
	Microsoft® WHQL
Device Driver Operating System Support
Device Driver Operating System Support	Windows®
	Linux®
	MAC OS®
	Solaris
	Android™ 3.1 and later
