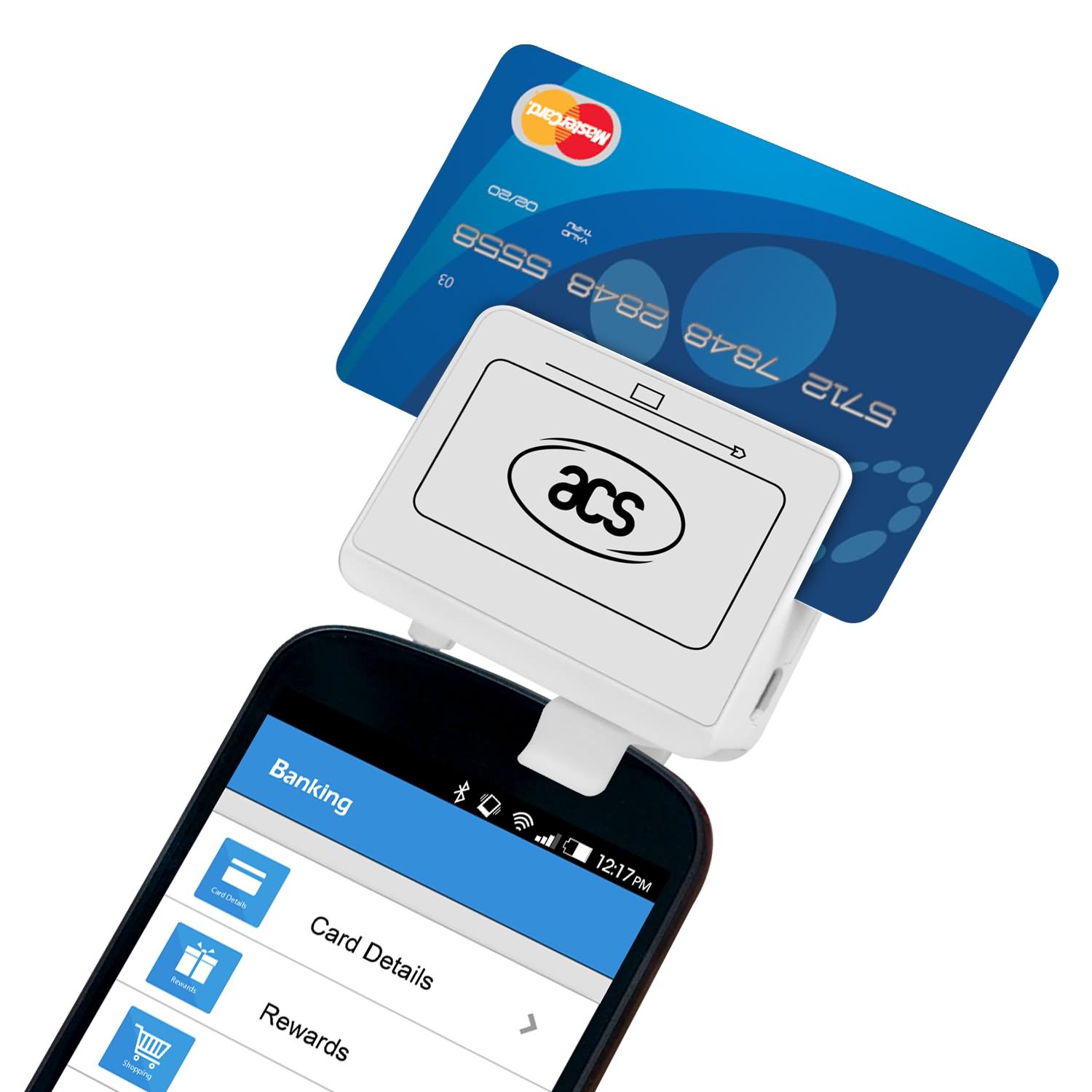

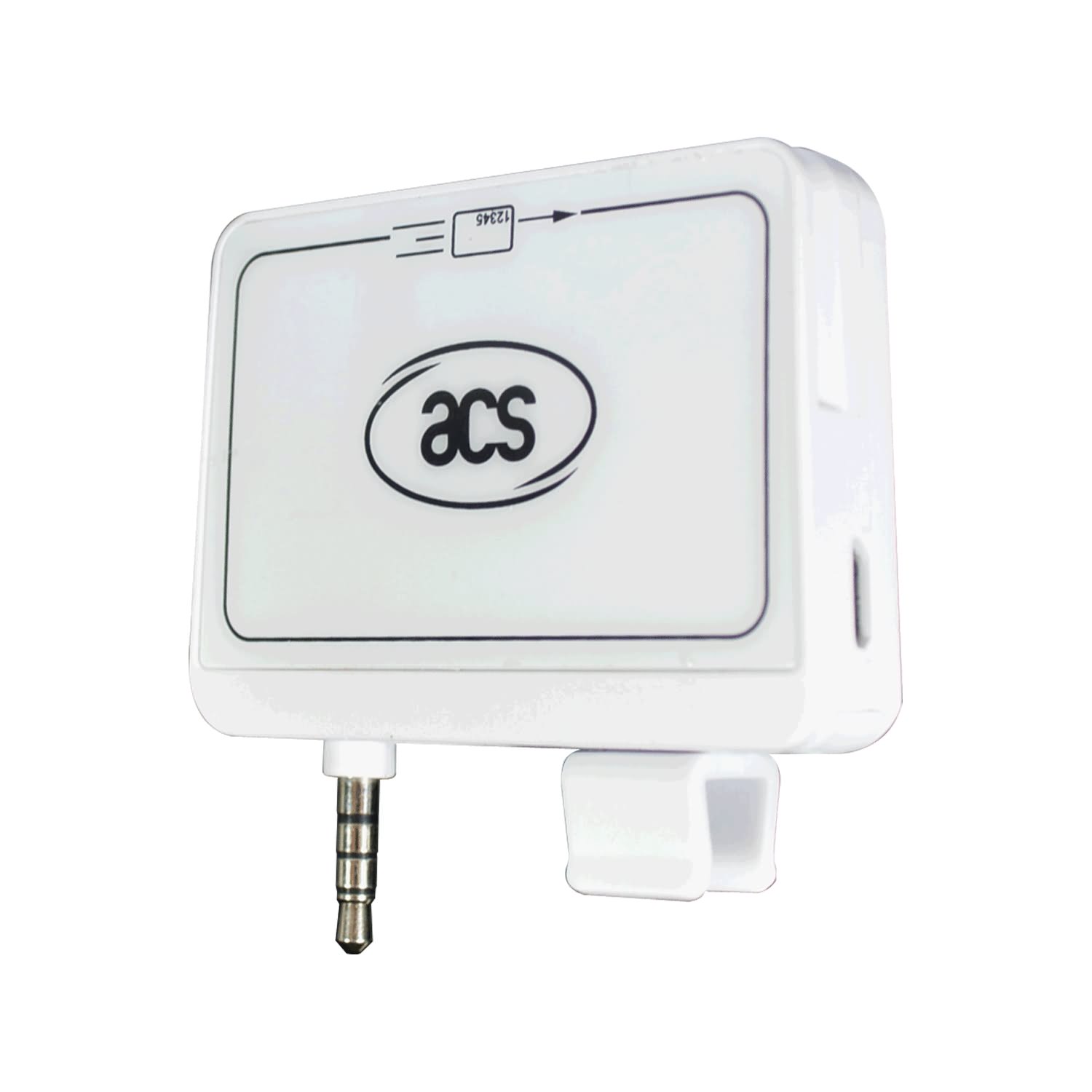

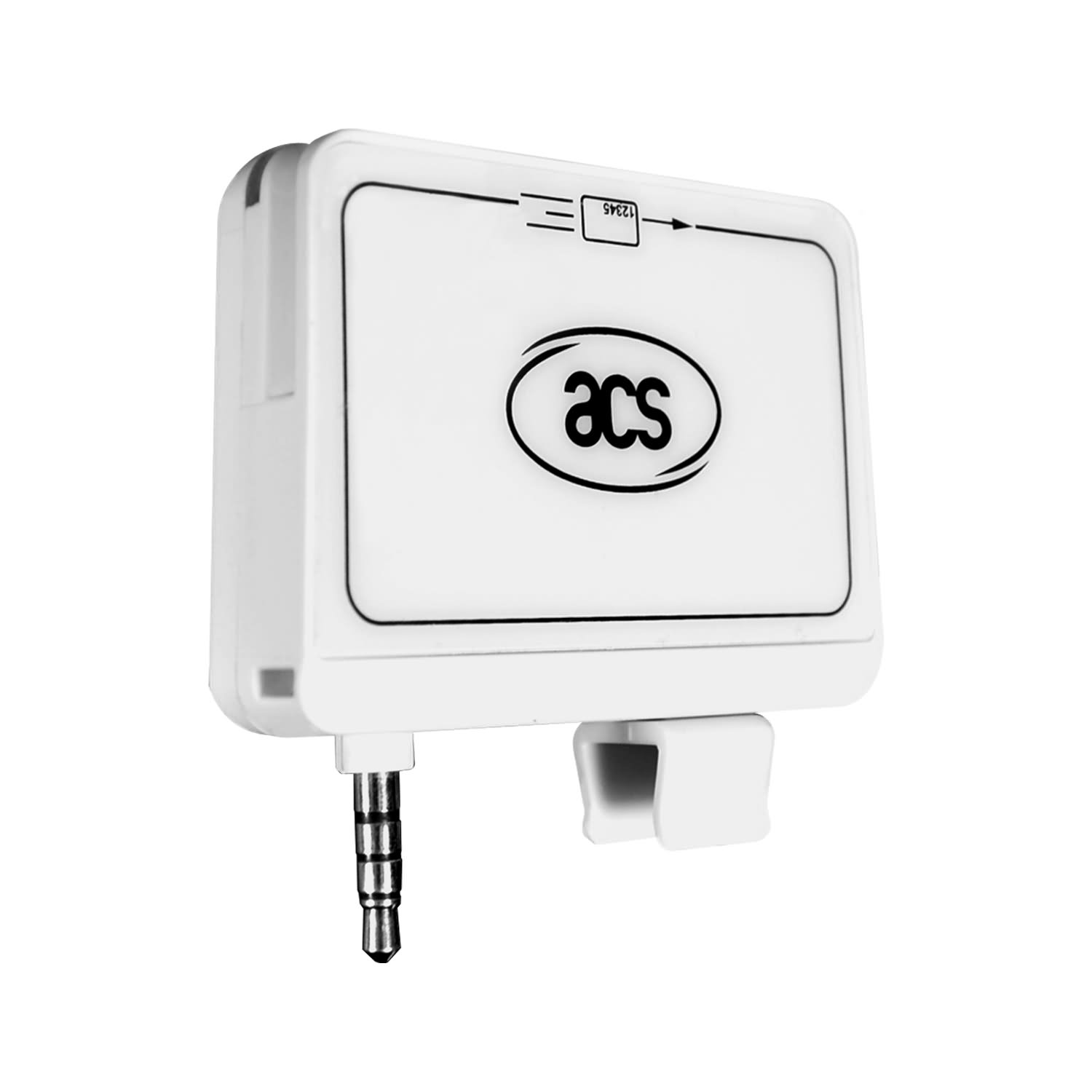

ACR3201 Reader
3.5 mm Audio Jack Interface
Power Source:
Battery-Powered (incorporates a Litium-ion battery rechargeable through Micro-USB port)
Smart Card Reader:
Contact Interface:
Supports ISO 7816 Class A, B, and C (5 V, 3 V, 1.8 V) cards
Supports microprocessor cards with T=0 or T=1 protocol
Supports memory cards
Supports PPS (Protocol and Parameters Selection)
Features Short-Circuit Protection
Magnetic Stripe Card Reader:
Reads up to two tracks of card data
Capable of bi-directional reading
Supports AES-128 encryption algorithm
Supports DUKPT Key Management System
Supports ISO 7810/7811 magnetic cards
Supports Hi-coercivity and Low-coercivity magnetic cards
Supports JIS1 and JIS2
Supports Android™ 2.0 and later
Supports iOS 5.0 and later
| Physical Characteristics | |
| Dimensions (mm) | 60.0 mm (L) x 45.0 mm (W) x 16.0 mm (H) |
| Weight (g) | 30.5 g (with battery) |
| Audio Jack Communication Interface | |
| Protocol | Bi-directional Audio Jack Interface |
| Connector Type | 3.5 mm 4-pole Audio Jack |
| Power Source | Battery-powered |
| USB Interface | |
| Connector Type | Micro-USB |
| Power Source | From USB Port |
| Cable Length | 1 m, Detachable |
| Contactless Smart Card Interface | |
| Number of Slots | 1 Full-sized Card Slot |
| Standard | ISO 7816 Parts 1-3, Class A, B, C (5 V, 3 V, 1.8 V) |
| Protocol | T=0; T=1; Memory Card Support |
| Magnetic Card Interface | |
| Standard | ISO 7810/7811 Hi-Co and Low-Co Magnetic Cards |
| JIS 1 and JIS 2 | |
| Other Features | |
| Encryption | In-device AES encryption algorithm |
| DUKPT Key Management System | |
| Certifications/Compliance | |
| Certifications/Compliance | EN 60950/IEC 60950 |
| ISO 7811 | |
| ISO 18092 | |
| ISO 14443 | |
| VCCI (Japan) | |
| KC (Korea) | |
| CE | |
| FCC | |
| RoHS 2 | |
| REACH | |
| Device Driver Operating System Support | |
| Device Driver Operating System Support | Android™ 2.0 and later |
| iOS 5.0 and later | |
