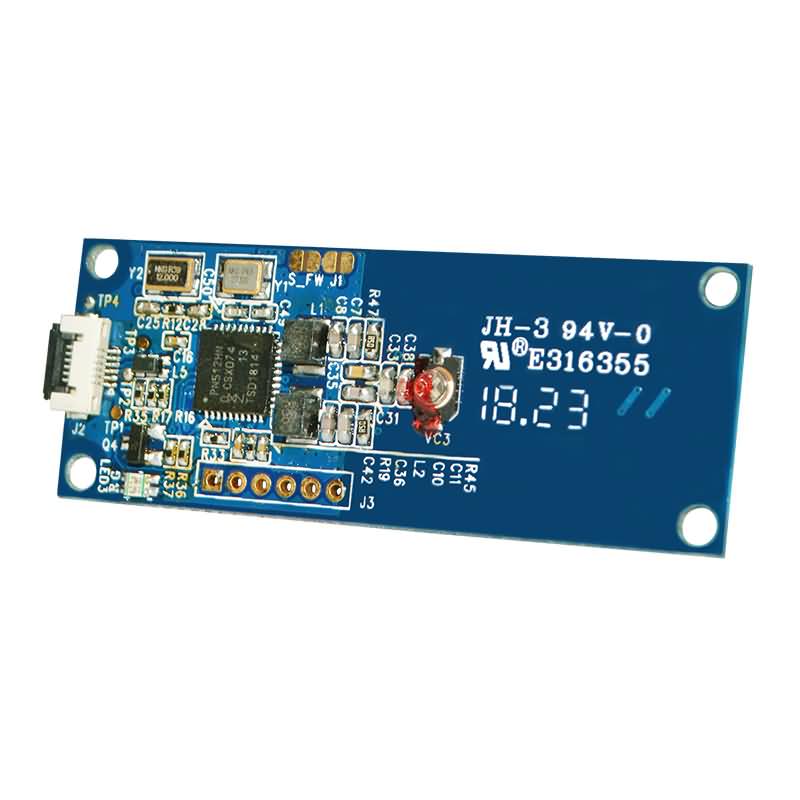

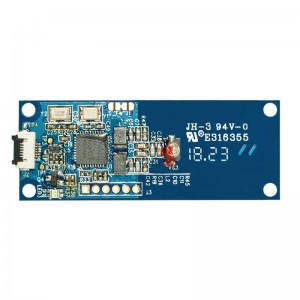

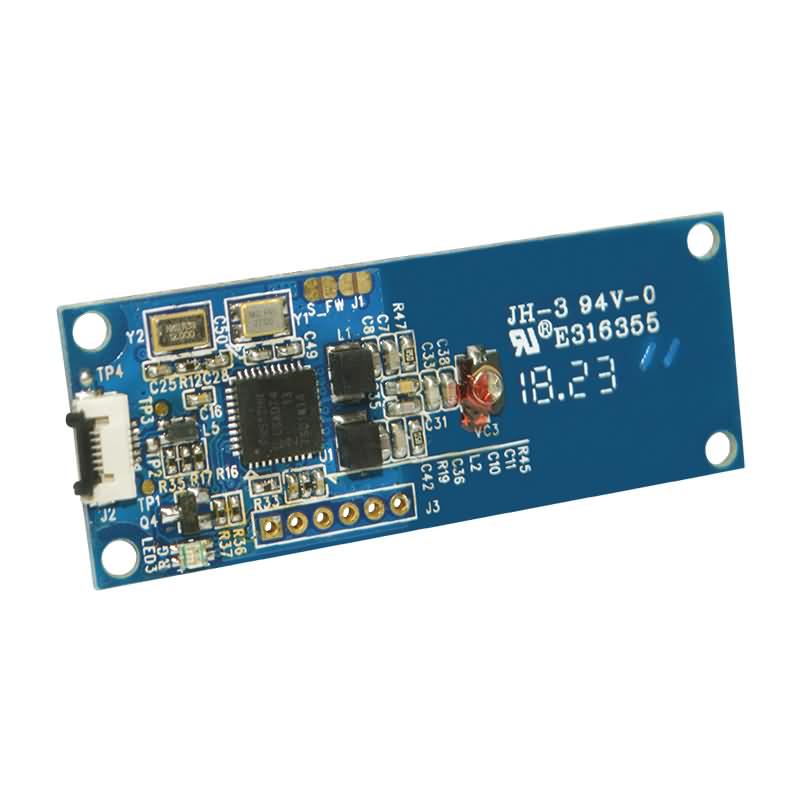

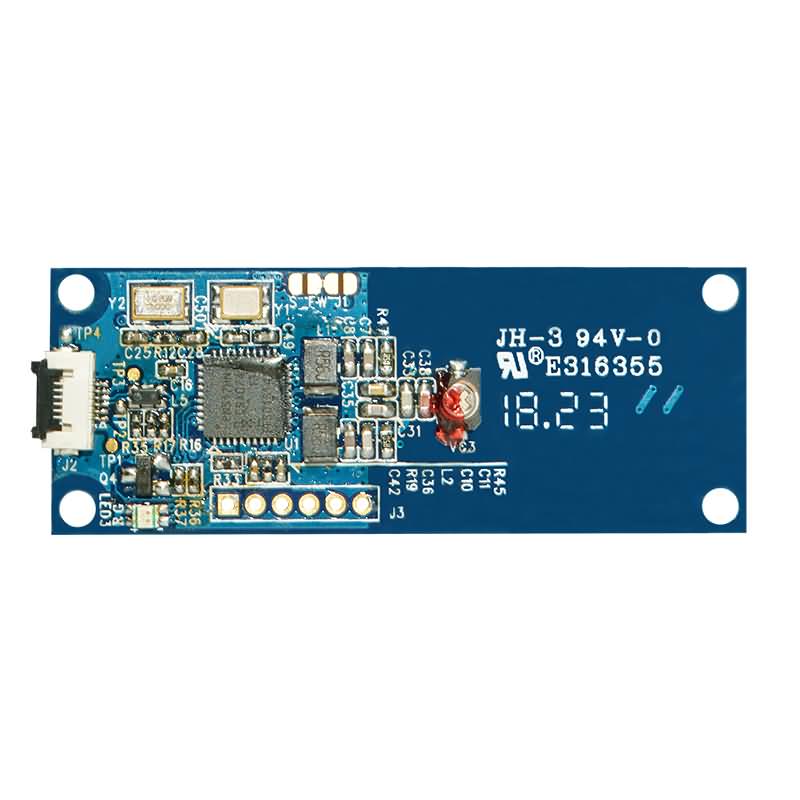

ACM1252U-Z6 Module Reader
USB Full Speed Interface via 6-pin FFC Connector
CCID Compliance
USB Firmware Upgradeability
Smart Card Reader:
Contactless Interface:
Read/write speed up to 424 kbps
Built-in Antenna for contactless tag access, with card reading distance of up to 30 mm (depending on tag type)
Supports ISO 14443 Type A and B cards, MIFARE, FeliCa, and all 4 types of NFC (ISO/IEC 18092) tags
Built-in anti-collision feature (only 1 tag is accessed at any time)
NFC Support:
Card Reader/Writer Mode
Peer-to-Peer Mode
Card Emulation Mode
Built-in Peripherals:
User-controllable bi-color LED
Application Programming Interface:
Supports PC/SC
Supports CT-API (through wrapper on top of PC/SC)
Supports Android™ 3.1 and later
| Physical Characteristics | |
| Dimensions (mm) | 52.0 mm (L) x 20.0 mm (W) x 6.0 mm (H) |
| Weight (g) | 3.45 g |
| USB Interface | |
| Protocol | USB CCID |
| Connector Type | 6-pin FFC |
| Power Source | From FFC Connector |
| Speed | USB Full Speed (12 Mbps) |
| Cable Length | 1.0 m, Detachable (Optional) |
| Contactless Smart Card Interface | |
| Standard | ISO/IEC 18092 NFC, ISO 14443 Type A & B, MIFARE, FeliCa |
| Protocol | ISO14443-4 Compliant Cards, T=CL |
| MIFARE Classic Card Protocol, T=CL | |
| ISO 18092, NFC Tags | |
| FeliCa | |
| Antenna | 20 mm x 22 mm |
| Other Features | |
| Firmware Upgrade | Supported |
| Built-in Peripherals | |
| LED | 1 bi-color: Red and Green |
| Certifications/Compliance | |
| Certifications/Compliance | ISO 14443 |
| ISO 18092 | |
| USB Full Speed | |
| PC/SC | |
| CCID | |
| CE | |
| FCC | |
| RoHS 2 | |
| REACH | |
| Microsoft® WHQL | |
| Device Driver Operating System Support | |
| Device Driver Operating System Support | Windows® |
| Linux® | |
| MAC OS® | |
| Solaris | |
| Android™ | |
