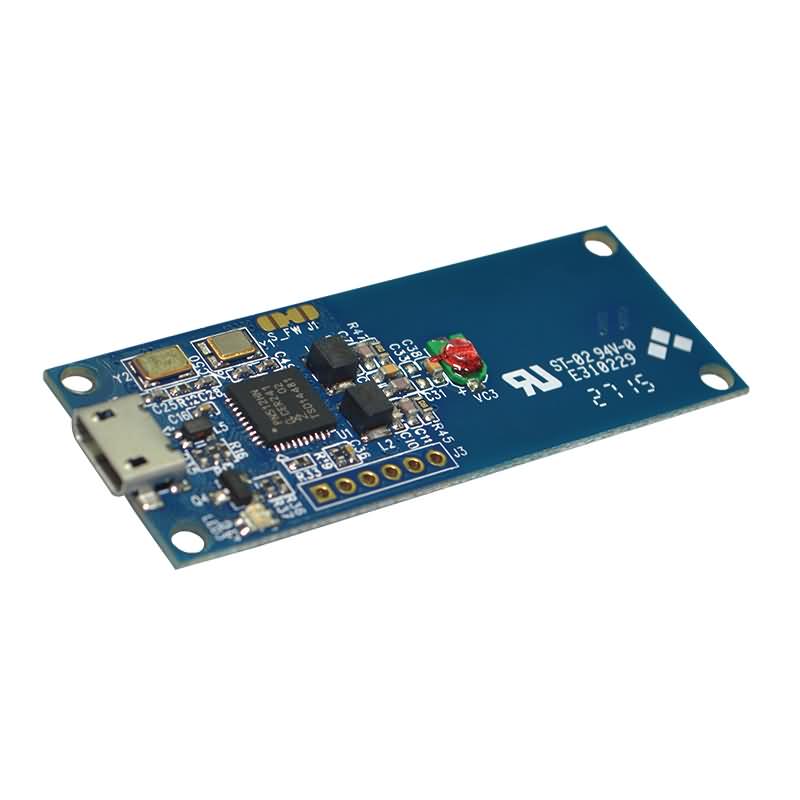

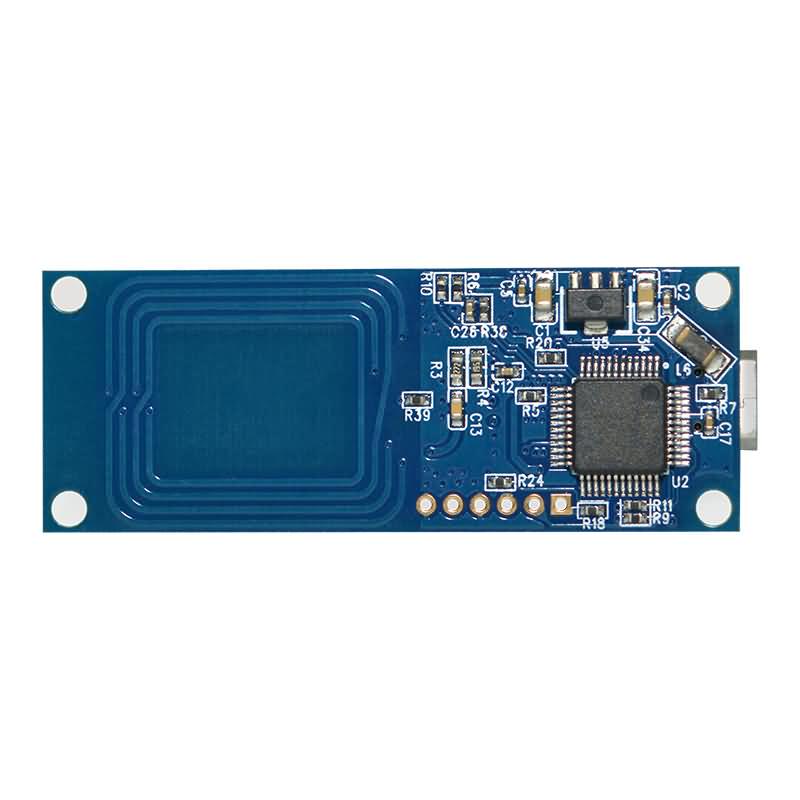

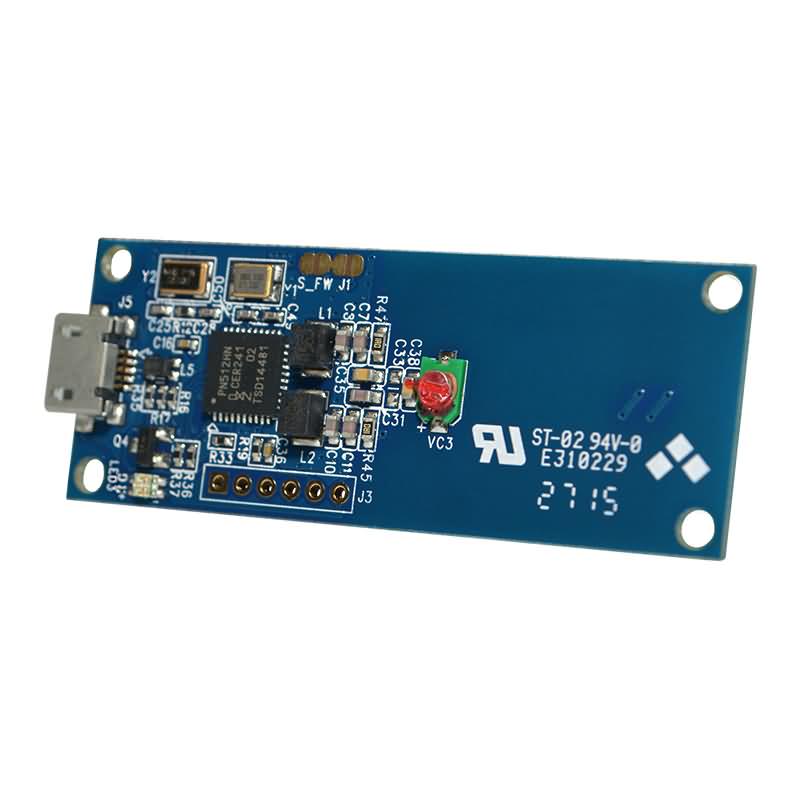

ACM1252U-Z2 Module Reader
USB 2.0 Full Speed Interface
CCID Compliance
Contactless Card Support:
Read/write speed of up to 424 kbps
Built-in antenna for contactless tag access, with card reading distance of up to 30 mm (depending on tag type)
Supports ISO 14443 Part 4 Type A and B cards, MIFARE, FeliCa and all four types of NFC (ISO 18092 tags)
Built-in anti-collision feature (only one tag is accessed at any time)
Application Programming Interface
Supports PC/SC
USB Firmware Upgradability
| Physical Characteristics | |
| Dimensions (mm) | 52.0 mm (L) x 20.0 mm (W) x 6.0 mm (H) |
| Weight (g) | 3.65 g |
| USB Interface | |
| Protocol | USB CCID |
| Connector Type | Micro USB |
| Power Source | From USB port |
| Speed | USB Full Speed (12 Mbps) |
| Cable Length | 1.0 m, Detachable (Optional) |
| Contactless Smart Card Interface | |
| Standard | ISO/IEC 18092 NFC, ISO 14443 Type A & B, MIFARE, FeliCa |
| Protocol | ISO14443-4 Compliant Cards, T=CL |
| MIFARE Classic Card Protocol, T=CL | |
| ISO 18092, NFC Tags | |
| FeliCa | |
| Antenna | 20 mm x 22 mm |
| Built-in Peripherals | |
| LED | 1 bi-color: Red and Green |
| Certifications/Compliance | |
| Certifications/Compliance | ISO 14443 |
| ISO 18092 | |
| USB Full Speed | |
| PC/SC | |
| CCID | |
| CE | |
| FCC | |
| RoHS 2 | |
| REACH | |
| Microsoft® WHQL | |
| Device Driver Operating System Support | |
| Device Driver Operating System Support | Windows® |
| Linux® | |
| MAC OS® | |
| Solaris | |
| Android™ | |
