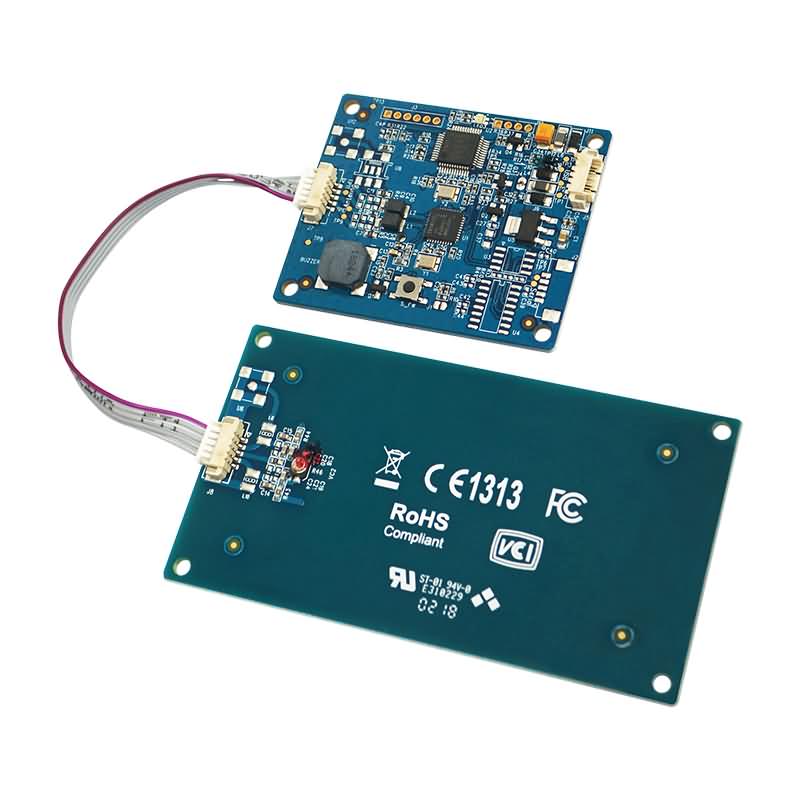

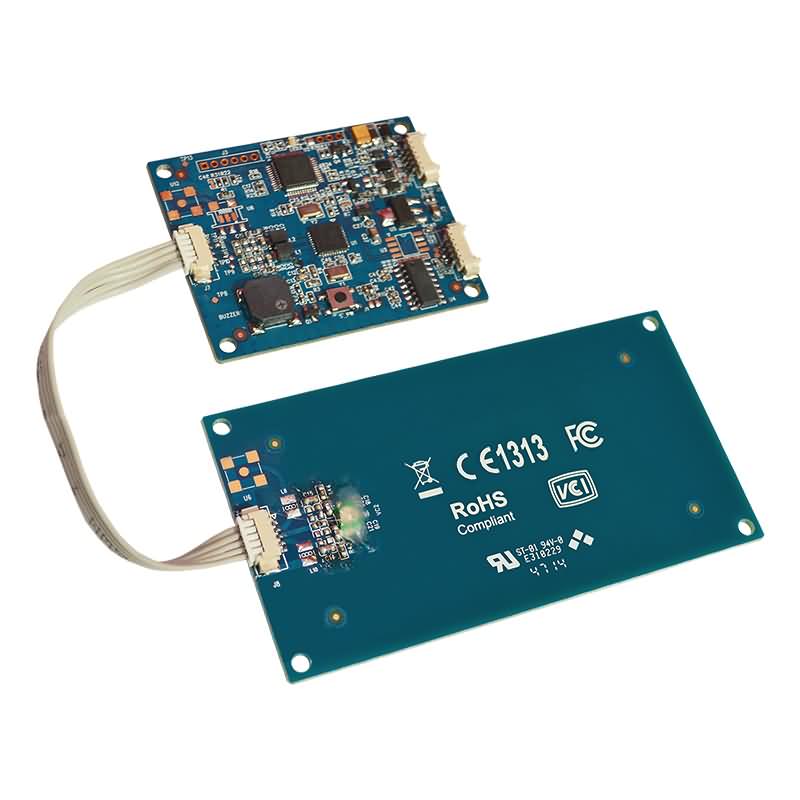

ACM1252U-Y3 Module Reader
USB 2.0 Full Speed Interface
CCID Compliance
USB Firmware Upgradeability
Smart Card Reader:
Contactless Interface: Read/write speed up to 424 kbps
Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)
Supports ISO 14443 Type A and B, MIFARE, and FeliCa cards, and all 4 types of NFC (ISO/IEC 18092) tags
Supports MIFARE 7-byte UID, MIFARE Plus and MIFARE DESfire
Built-in anti-collision feature (only 1 tag is accessed at any time)
NFC Reader/Writer Mode
Peer-to-Peer Mode
Card Emulation Mode
Application Programming Interface: Supports PC/SC; Supports CT-API (through wrapper on top of PC/SC)
User-controllable bi-color LED
User-controllable buzzer
| Physical Characteristics | |
| Dimensions (mm) | Main Board: 55.0 mm (L) x 45.0 mm (W) x 5.1 mm (H) |
| Antenna Board: 91.0 mm (L) x 49.5 mm (W) x 5.1 mm (H) | |
| Weight (g) | 26.6 g |
| USB Interface | |
| Protocol | USB CCID |
| Connector Type | Standard Type A |
| Power Source | From USB port |
| Speed | USB Full Speed (12 Mbps) |
| Contactless Smart Card Interface | |
| Standard | ISO/IEC 18092 NFC, ISO 14443 Type A & B, MIFARE®, FeliCa |
| Protocol | ISO 14443-4 Compliant Card, T=CL |
| MIFARE® Classic Card, T=CL | |
| ISO18092, NFC Tags | |
| FeliCa | |
| Antenna | 77 mm x 49.5 mm |
| SAM Card Interface | |
| Number of Slots | 1 (Optional) |
| Built-in Peripherals | |
| LED | 1 bi-color: Red and Green |
| Buzzer | Monotone |
| Certifications/Compliance | |
| Certifications/Compliance | EN 60950/IEC 60950 |
| ISO 7816 (SAM Slot) | |
| ISO 14443 | |
| ISO 18092 | |
| USB Full Speed | |
| PC/SC | |
| CCID | |
| VCCI (Japan) | |
| CE | |
| FCC | |
| RoHS 2 | |
| REACH | |
| Microsoft® WHQL | |
| Device Driver Operating System Support | |
| Device Driver Operating System Support | Windows® CE |
| Windows® | |
| Linux® | |
| MAC OS® | |
| Solaris | |
| Android™ | |
